UDMA tips and tricks under NetWare - screenshots section

NetWare 3.12 on a HP ProLiant ML370, 2.8GHz XEON, 2GB RAM, 2*18.2GB SCSI harddisks on a HP Ultra3 (Adaptec 29160) controller.

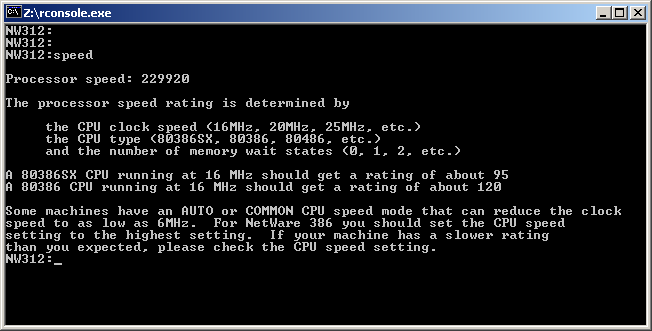

3.12 - The need for the speed...

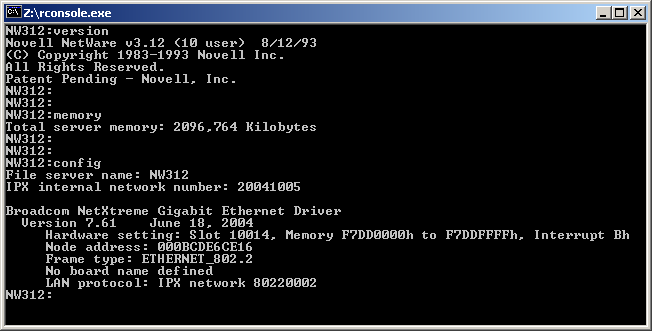

3.12 - version, memory, config - note the Gigabit adapter

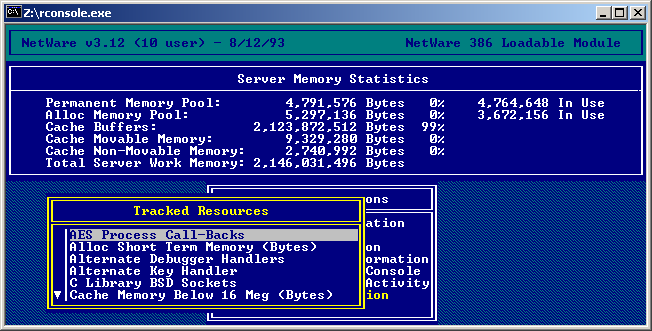

3.12 - Sweet memories...

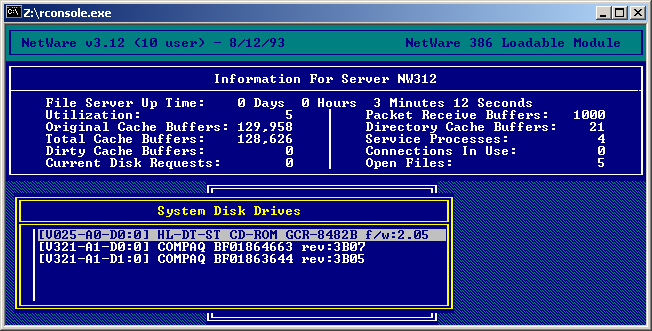

3.12 - HDD information in monitor.nlm




Detailed console log with:
  IDE chipset ID 02121166 (ServerWorks CSB5 / SWC-SB7440) present
    Class Code:       Base: 01 Sub: 01 Prog: 8A
    Product ID:       1166.0212.1166.0212.93
    Primary:          000001F1 000003F5  Secondary:  00000171 00000375
    BMIBA:            00002001    Interrupt Line:   00
  Bus 0 (Primary Channel Master): HL-DT-ST CD-ROM GCR-8482
    Config Bits:   85C0    Capabilities:  0F00    Validity Bits: 0006
    Multiword DMA: 0007    Ultra DMA:     0203    Cable Type:    0000
    Capacity:      FFFFFFFF (   0 GB) Max Capacity:  0000000000000000
    (48-bit enabled: No)
  80-conductor cable not detected on bus 0 (ch 0) device 0
  DMA level currently set: 41    Capable of: 41    Action: None
