NetWare Partition, HotFix, Mirror and Volume table information

C H S (Cylinder, Head, Sector)
32 00 01 ".Nw_PaRtItIoN"
00000000: 00 4E 77 5F 50 61 52 74 - 49 74 49 6F 4E 00 00 00 .Nw_PaRtItIoN...
00000010: 65 01 00 00 22 7F 5C 02 - 30 07 7D 2A 00 00 00 00 e.."\0}*.... 65 - partitioner type
000000...: 01 - partition type (lower byte)
000000A0: 00 00 00 00 00 00 00 00 - 00 00 00 00 00 BE 99 18 .............ľ™ 14 - Beginning sector???
000000B0: D6 23 D5 11 B2 1F 00 01 - 02 F0 74 AA 00 00 00 00 .#.˛.đtŞ.... 18 - timestamp???
32 00 02 Copy of partition table/MBR (0/0/1)
32 00 33 HOTFIX - 1. Copy
00000000: 48 4F 54 46 49 58 30 30 - 31 07 7D 2A 00 00 01 00 HOTFIX001}*... "HOTFIX00" - ASCII ID string
00000010: 08 F8 03 07 08 43 5C 02 - 18 3C 00 00 A0 00 00 00 řC\<.. ... 2A7D0731 - Hotfix Identifier
00000020: E0 00 00 00 20 01 00 00 - 60 01 00 00 A0 01 00 00 ŕ... ..`.. .. 00003C18 - Hotfix Offset
00000030: E0 01 00 00 20 02 00 00 - 60 02 00 00 00 00 00 00 ŕ.. ..`......
100 128
32 00 34 MIRROR - 1. Copy
00000000: 4D 49 52 52 4F 52 30 30 - 31 07 7D 2A 00 00 B0 02 MIRROR001}*..° "MIRROR00" - ASCII ID string
00000010: 08 F8 03 07 01 00 01 00 - D0 1F 00 00 EA 6D 68 2B ř.....ęmh+ 2B686DEA - Mirror Group ID
00000020: 31 07 7D 2A 00 00 00 00 - 00 00 00 00 00 00 00 00 1}*............
32 00 01
DISK 0 ".Nw_PaRtItIoN" - later on
00000000: 00 4E 77 5F 50 61 52 74 - 49 74 49 6F 4E 00 00 00 .Nw_PaRtItIoN...
00000010: 65 01 00 00 22 7F 5C 02 - B3 76 68 2B 00 00 00 00 e.."\łvh+....
000000...:
000000A0: 00 00 00 00 00 00 00 00 - 00 00 00 00 00 DD 65 02 ..............e
000000B0: 50 D4 D5 11 B2 1F 00 01 - 02 F0 74 AA 00 00 00 00 P..˛.đtŞ....
DISK 1
00000000: 00 4E 77 5F 50 61 52 74 - 49 74 49 6F 4E 00 00 00 .Nw_PaRtItIoN...
00000010: 65 01 00 00 22 7F 5C 02 - CB 7D 68 2B 00 00 00 00 e.."\.}h+....
000000...:
000000A0: 00 00 00 00 00 00 00 00 - 00 00 00 00 80 89 E2 60 ............€‰â`
000000B0: 57 D4 D5 11 B2 1F 00 01 - 02 F0 74 AA 00 00 00 00 W..˛.đtŞ....
Befbrk HOTFIX and MIRROR tables,
disk0   before breaking an incomplete mirror.
00000000: 48 4F 54 46 49 58 30 30 - B4 76 68 2B 00 00 01 00 HOTFIX00.vh+...
00000010: 08 F8 03 07 08 43 5C 02 - 18 3C 00 00 A0 00 00 00 řC\<.. ...
00000020: E0 00 00 00 20 01 00 00 - 60 01 00 00 A0 01 00 00 ŕ... ..`.. ..
00000030: E0 01 00 00 20 02 00 00 - 60 02 00 00 00 00 00 00 ŕ.. ..`......
disk1
00000000: 48 4F 54 46 49 58 30 30 - CC 7D 68 2B 00 00 01 00 HOTFIX00.}h+...
00000010: 08 F8 03 07 08 43 5C 02 - 18 3C 00 00 A0 00 00 00 řC\<.. ...
00000020: E0 00 00 00 20 01 00 00 - 60 01 00 00 A0 01 00 00 ŕ... ..`.. ..
00000030: E0 01 00 00 20 02 00 00 - 60 02 00 00 00 00 00 00 ŕ.. ..`......
Befbrk
disk 0 2B6876B4 is the new disk 0,
00000000: 4D 49 52 52 4F 52 30 30 - B4 76 68 2B 00 00 1E 00 MIRROR00.vh+... old disk 0 (2A7D0731) was removed
00000010: 08 F8 03 07 01 00 01 00 - D0 1F 00 00 45 7C 68 2B ř.....E|h+ 2B687C45 - New Mirror Group ID
00000020: 31 07 7D 2A B4 76 68 2B - 00 00 00 00 00 00 00 00 1}*.vh+........ 01=incomplete mirror group
B4 76 68 2B is incomplete with 31 07 7D 2A  as it was removed from the system
newmirr2
disk 0
00000000: 4D 49 52 52 4F 52 30 30 - B4 76 68 2B 00 00 4F 00 MIRROR00.vh+..O. new disk 1 (2B687DCC) installed
00000010: 08 F8 03 07 02 00 01 00 - D0 1F 00 00 5B 7E 68 2B ř.....[~h+ 2B687E5B - New Mirror Group ID
00000020: B4 76 68 2B CC 7D 68 2B - 00 00 00 00 00 00 00 00 .vh+.}h+........
disk 1
00000000: 4D 49 52 52 4F 52 30 30 - CC 7D 68 2B 00 00 13 00 MIRROR00.}h+....
00000010: 08 F8 03 07 02 00 01 00 - D0 1F 00 00 5B 7E 68 2B ř.....[~h+
00000020: B4 76 68 2B CC 7D 68 2B - 00 00 00 00 00 00 00 00 .vh+.}h+........
means: B4 76 68 2B is now complete, with CC 7D 68 2B and 02 ,is syncing
sync ok
disk 0 disk 0 (2B6876B4) and
00000000: 4D 49 52 52 4F 52 30 30 - B4 76 68 2B 00 00 65 00 MIRROR00.vh+..e. disk 1 (2B687DCC) now
00000010: 08 F8 03 07 00 00 01 00 - D0 1F 00 00 46 84 68 2B ř......F„h+ 2B688446 - New Mirror Group ID
00000020: B4 76 68 2B CC 7D 68 2B - 00 00 00 00 00 00 00 00 .vh+.}h+........ created (based on timestamp)
disk 1 in sync ??? 01 - number of partitions in the mirror???
00000000: 4D 49 52 52 4F 52 30 30 - CC 7D 68 2B 00 00 29 00 MIRROR00.}h+..).
00000010: 08 F8 03 07 00 00 01 00 - D0 1F 00 00 46 84 68 2B ř......F„h+
00000020: B4 76 68 2B CC 7D 68 2B - 00 00 00 00 00 00 00 00 .vh+.}h+........
in sync
32 244 45 Volume table - (4 copies)
00000000: 4E 65 74 57 61 72 65 20 - 56 6F 6C 75 6D 65 73 00 NetWare Volumes. 00 "NetWare Volumes" - ASCIIZ ID string
00000010: 02 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ............... 10 00000002 - Number of volumes
00000020: 03 53 59 53 00 00 00 00 - 00 00 00 00 00 00 00 00 SYS............ 20 length of the following volume name, max 0F (15)
00000030: 00 00 00 00 07 01 00 00 - A0 00 00 00 00 00 80 00 ...... .....€. 21 "SYS" - volume name, zero filled
00000040: 00 00 01 00 00 00 00 00 - 00 00 00 00 04 00 00 00 ............... 14 block size (2^n-1)KB (3=4,4=8,5=16,6=32,7=64K)
00000050: 10 00 00 00 15 00 00 00 - 00 00 00 00 04 56 4F 4C ............VOL 15 number of volume segments [?]
00000060: 31 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 1............... 18 starting block [?]
00000070: 07 01 00 00 A0 00 80 00 - 68 42 DC 01 84 B8 03 00 .. .€.hBÜ„¸. 1C volume size in sectors [512/byte] (blocks/size)
00000080: 00 00 00 00 00 00 00 00 - 04 00 00 00 3B 00 00 00 ............;... 20 volume size in blocks
00000090: 40 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 @...............

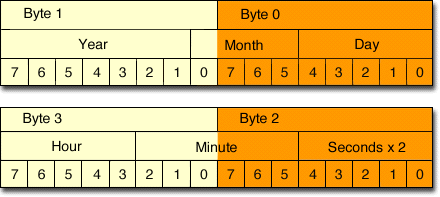

2579792D 00100101
2A7D0731 01111001
2C677559 01111001
2579792D 00101101
1998 year 15 hour 1998 15
11 month 9 minute 11 9
25 day 26 second 25 26
Picture from (and more on File Attributes, Extended File Attributes and Directory Entry Table):
http://developer.novell.com/ndk/doc/clib/index.html?page=/ndk/doc/clib/mlti_enu/data/h7og9bk3.html
